Product
Click to view and download Product Specifications, Manufacturer's Certification, and Loading Charts.

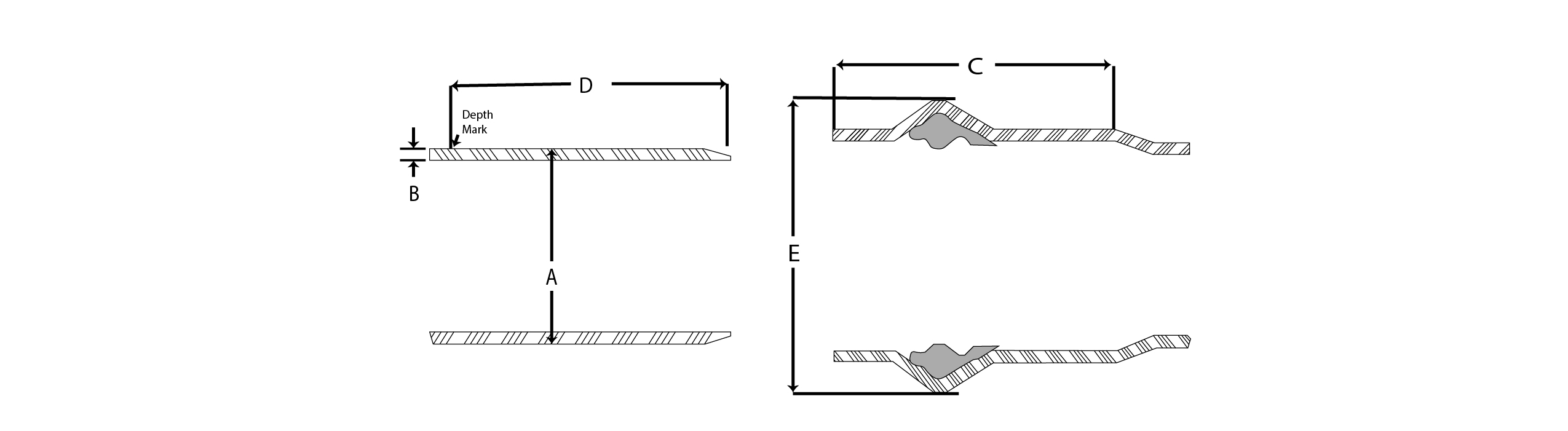

Minimum Wall (B) | ||||
| Pipe Size | Outside Diameter (A) | DR-25 (165 PSI) | DR-18 (235 PSI) | DR-14 (305 PSI) |
| 4″ | 4,800″ | 0.192″ | 0.267″ | 0.343″ |
| 6″ | 6,900″ | 0.276″ | 0.383″ | 0.493″ |
| 8″ | 9.050″ | 0.362″ | 0.503″ | 0.646″ |
| 10″ | 11,100″ | 0.444″ | 0.617″ | 0.793″ |
| 12″ | 13,200″ | 0.528″ | 0.733″ | 0.943″ |
| Pipe Size | Bell Length (C) | Insertion/Reference Mark (D) | Approximate Bell OD Clearance (E) |
| 4″ | 5.50″ | 4.50″ | 6.50″ |
| 6″ | 6.25″ | 5.25″ | 9.25″ |
| 8″ | 7.50″ | 6.50″ | 11.875″ |
| 10″ | 8.75″ | 7.75″ | 14.500″ |
| 12″ | 9.25″ | 8.25″ | 16.875″ |
| Pipe Size | Pipe Length | Pieces per Pallet | Feet per Pallet | Pallets per Truck | Feet per Truck |
| 4″ | 20′ | 60 | 1,200′ | 12 | 14,400′ |
| 4″ DR14 | 20′ | 50 | 1,000′ | 12 | 12,000′ |
| 6″ | 20′ | 28 / 7 | 560 ‘/ 140″ | 12 / 4 | 7,280′ |
| 6″ DR14 | 20′ | 28 | 560′ | 12 | 6,720′ |
| 8″ | 20′ | 10 | 200′ | 20 | 4,000′ |
| 10″ | 20′ | 8 | 160′ | 16 | 2,560′ |
| 12″ | 20′ | 6 / 8 | 120′ / 160′ | 6 /6 | 1,960′ |
